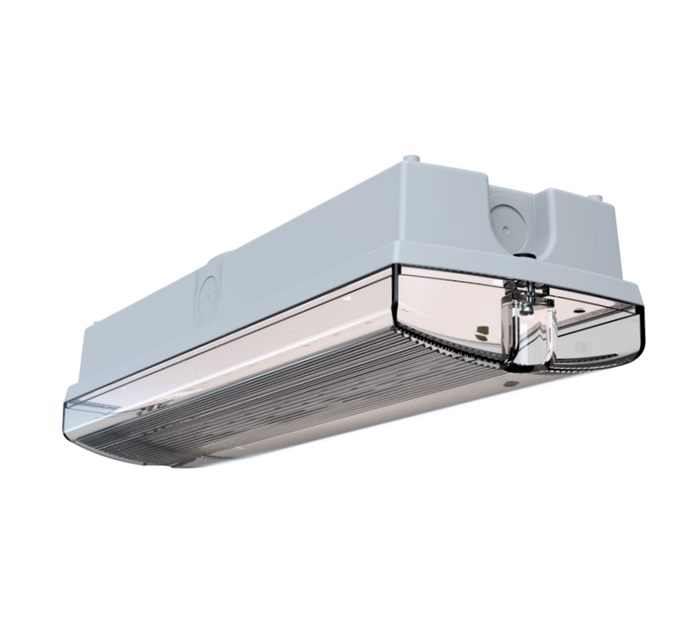

VENTILUX VISOR LED Emergency Bulkhead Maintained IP65

€ 29.74

VENTILUX | VISOR LED | Emergency Bulkhead | 0.6W LED | Maintained | IP65 | VIM3/LED

Discount per Quantity

QuantityDiscountPrice
10 - 192%€ 29.15
20 - 494%€ 28.55
50 +6%€ 27.96
Wishlist
SKU: VIM3/LED Category:

Description

VENTILUX VISOR LED Emergency Bulkhead. 0.6W LED. Self-contained. Maintained. IP65

Designed for Commercial Use.



Product Features

  • 10 high output white LEDs.
  • Lamp colour - 5000K.
  • Lamp power - 0.6W.
  • 70 lumens in emergency.
  • Competitively priced, LED bulkhead.
  • Easy to install and maintain.
  • Hinged gear tray.
  • IP65 as standard.
  • Class I
Materials
  • Body - flame retardant ABS plastic.
  • Diffuser - flame retardant clear ABS plastic.
  • Gear Tray - powder coated sheet steel.
  • Batteries (self-contained) - 3.6V 1.8A/h Ni-Cd.
Installation notes
  • Suitable for wall mounting.
  • Suitable for ceiling mounting.
  • 20mm cable entry on sides and ends of unit.
  • 20mm cable entry on rear of unit.

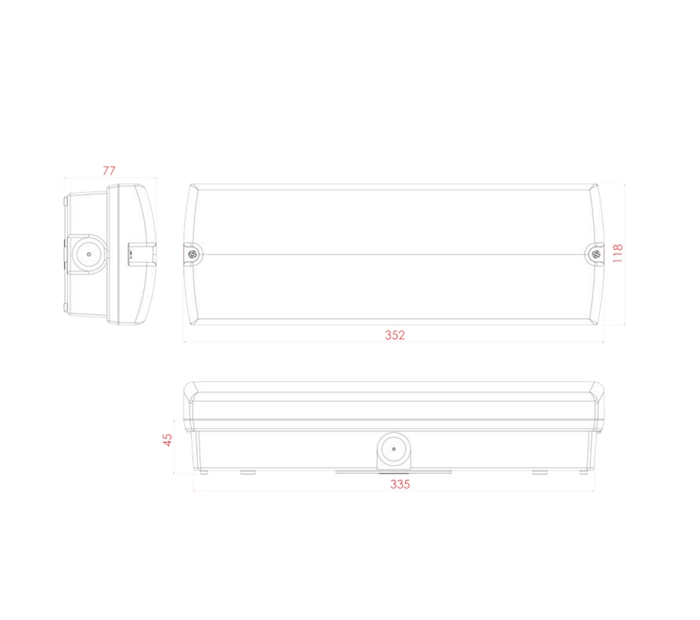

  • Dimensions - See diagram & specifications tab.
  • Recessing kit available
  • Weight: 0.8 Kg.
  • Temperature range - 0ºC to +45ºC

Emergency Bulkhead Specifications
  Brand/Model:   Ventilux Visor LED Emergency Bulkhead VIM3/LED .
  Lamp Type:   Emergency Bulkhead, Self contained, Maintained .
  Mounting position:   Wall or Ceiling Mount
  Lighting Source:   LEDs x 10
  Voltage:   220 - 240 VAC
  Batteries:   Self-contained  3.6V 1.8A/h Ni-Cd
  Power Consumption: .   0.6 W
  Luminous Flux:   70 lm (in emergency)
  Colour Temperature (Kelvin):   5000 K
  Electrical Classification:   I
  IP Rating:   IP65
  Operating Temperature Range: .   0ºC to +45ºC
  Weight:   800 g
  Overall Dimensions:   Length: 352 mm
  Width: 118 mm
  Depth: 77 mm
  Certifications:   TUV, CE, IEC
  Model Number:    VIM3/LED
