STEINEL Motion Detector Sensor IS 2140 ECO IP54 Black
STEINEL Motion Detector Sensor IS 2140 ECO IP54 Black
Sale!

STEINEL Motion Detector Sensor IS 2140 ECO IP54 Black

€ 25.46

Discount per Quantity

QuantityDiscountPrice
6 - 113%€ 26.00
12 - 235%€ 25.46
24 +8%€ 24.66
Wishlist
SKU: STEINEL IS 2140 ECO BLACK 034689 Categories: , , , , , , , ,
STEINEL

Description

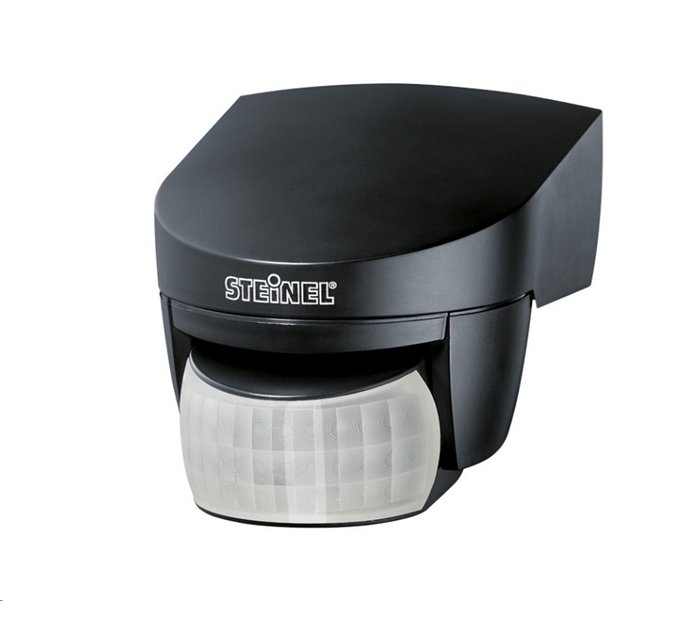

STEINEL Motion Detector IS 2140 ECO Infrared (PIR) Sensor Black Body, IP54 rated for indoor or outdoor use.

Ideal motion detector for entrances, driveways, building facades, carports, etc.

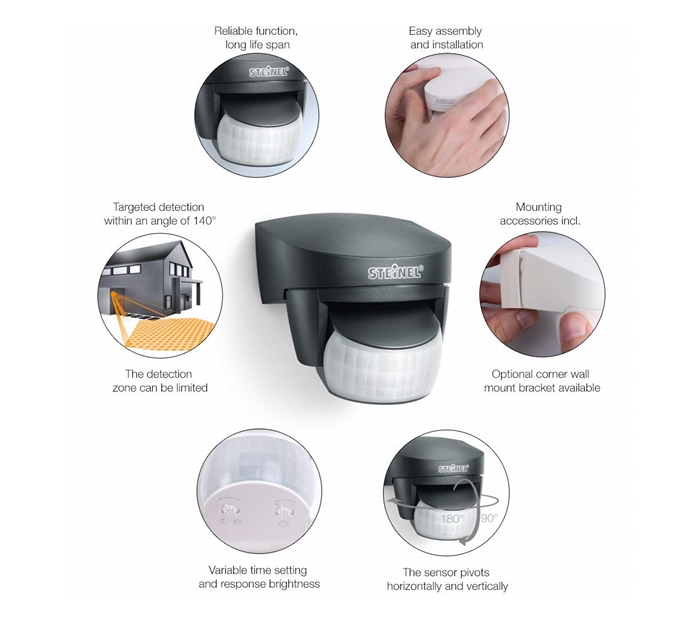

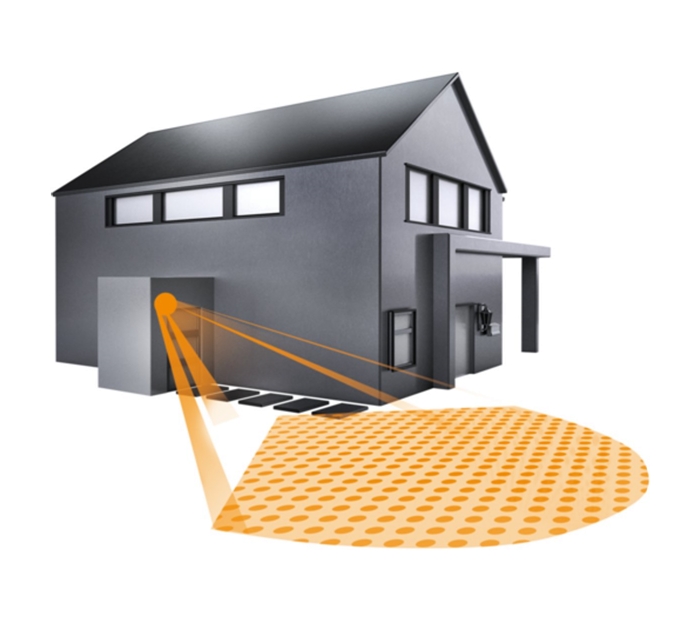

The STEINEL classic detector, now with even more class. Infrared motion detector IS 2140 ECO, for indoors and out, ideal for targeted detection close to the building, 140° angle of coverage, reach up to 14m, selectable time and twilight threshold, sensor turns through 180° and tilts through 90° for exact adjustment of the detection zone.

Technical specifications

Model    Motion sensor

Sensor type    Passive infrared

Detection angle    140°

Reach, radial    r = 3m (11m2)

Reach, tangential    t = 14m (239m2)

Sneak-by guard    Yes

Application    Indoors, outdoors

Installation    Wall, surface

Recommended mounting height    2m

Dimensions (l x w x h):    70 x 86 x 95mm

Voltage    230-240 V/50 Hz

Resistive    2000 W

Number of LED's / fluorescent lamps    max. 4 (electronic ballast / LED lamps) C ≤ 88 µf

Capability of masking out individual segments    Yes

Sensor system    144 switching zones

Twilight setting    2 - 2000 Lux

Time setting    8 sec. - 35 min.

Manual override    No

Material    U.V. resistant plastic

Degree of protection (IP) / Protection class    IP54

Temperature    -20-50 °C

Version    Black

Warranty    5 years
