LUXOMAT Surface Corridor Ceiling Motion Detector PD4N-1C-SM
LUXOMAT Surface Corridor Ceiling Motion Detector PD4N-1C-SM

LUXOMAT Surface Corridor Ceiling Motion Detector PD4N-1C-SM

€ 84.95

Discount per Quantity

QuantityDiscountPrice
10 - 192%€ 83.25
20 - 494%€ 81.55
50 +6%€ 79.85
Wishlist
SKU: LUXOMAT PD4N-1C-SM 92270 Categories: , ,
B.E.G. LUXOMAT

Description

B.E.G. LUXOMAT PD4N-IC-SM Surface Ceiling-mounted Motion Detector for Long Corridors 1-channel White body 360° Detection Area 300W LED 1150VA

  • Remote control-capable ceiling motion detector designed for corridors
  • One channel for light switching
  • Special optical system for detection of even the smallest movements
  • Additional functions can be set up using the optional remote control.
  • Uninterrupted parallel circuit detection of several detectors
  • Factory settings 10 min and 500 lux
  • There are markings to ensure correct alignment during installation
  • Typical application: monitoring of long corridors

Motion Detector Specifications
Brand/Model: B.E.G. LUXOMAT Surface Ceiling-mount Motion Detector PD4N-1C-SM Corridor
Input Voltage: 110 – 240 V AC
Input Frequency: 50 / 60 Hz
Power Consumption: Approx 0.4 W

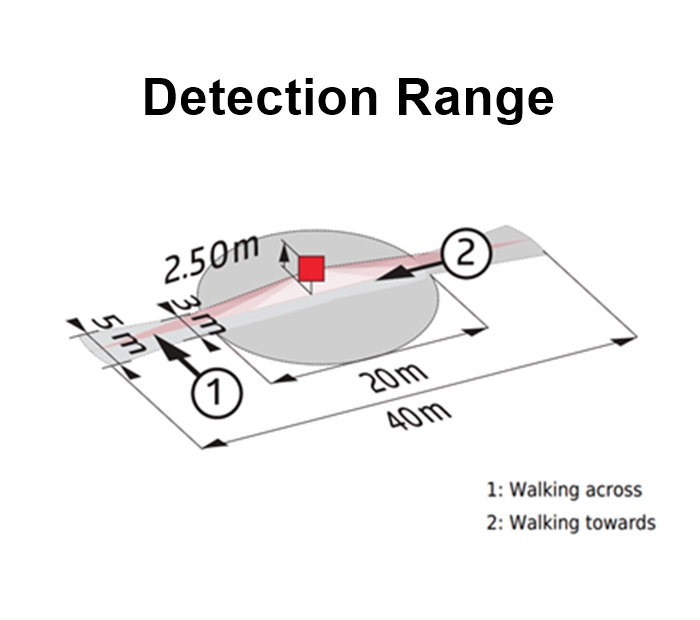

Detection Area: Horizontal 360° (Ceiling mounting)
Range: Max. 40 x 5 metres across
Max 20 x 3 metres towards
Monitored Area (tangential movement): 250 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2.4 m / 2.6 m / 2.5 m
Degree / class of protection: IP44 / Class II
Operating Temperature: -25ºC to +50ºC

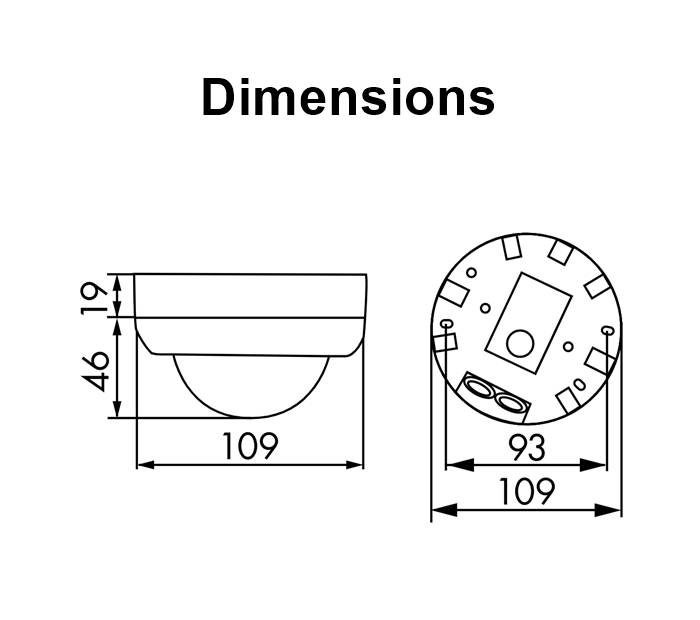

Overall Dimensions: Diameter: 109 mm
Height: 65 mm
Case/Housing Colour: WHITE
Housing: Polycarbonate, UV-resistant
Switching Power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Model Number: LUXOMAT PD4N-1C-SM 92270
