LUXOMAT Recessed Ceiling-mounted Motion Detector PD9-1C-FP
LUXOMAT Recessed Ceiling-mounted Motion Detector PD9-1C-FP

LUXOMAT Recessed Ceiling-mounted Motion Detector PD9-1C-FP

€ 52.65

Discount per Quantity

QuantityDiscountPrice
10 - 192%€ 51.60
20 - 494%€ 50.54
50 +6%€ 49.49
Wishlist
SKU: LUXOMAT PD9-1C-FP 92902 Categories: , ,
B.E.G. LUXOMAT

Description

B.E.G. LUXOMAT PD9-IC-FP Recessed Ceiling-mounted Motion Detector 1-channel White body 360° Detection Area 200W LED 1000VA

  • Mini-motion detector for indoor use
  • One channel for light switching
  • Easy installation on device
  • Power supply passes through the hole in the ceiling for the detector (34 mm Ø)
  • Spring clips for quick and easy installation in suspended ceilings and light fittings
  • Includes 45 mm cover ring and blinds
  • Typical applications: offices, conference rooms, hospitals, galleries, nursery schools

Motion Detector Specifications
Brand/Model: B.E.G. LUXOMAT Recessed Ceiling-mount Motion Detector PD9-1C-FP
Input Voltage: 110 – 240 V AC
Input Frequency: 50 / 60 Hz
Power Consumption: Approx 0.5 W

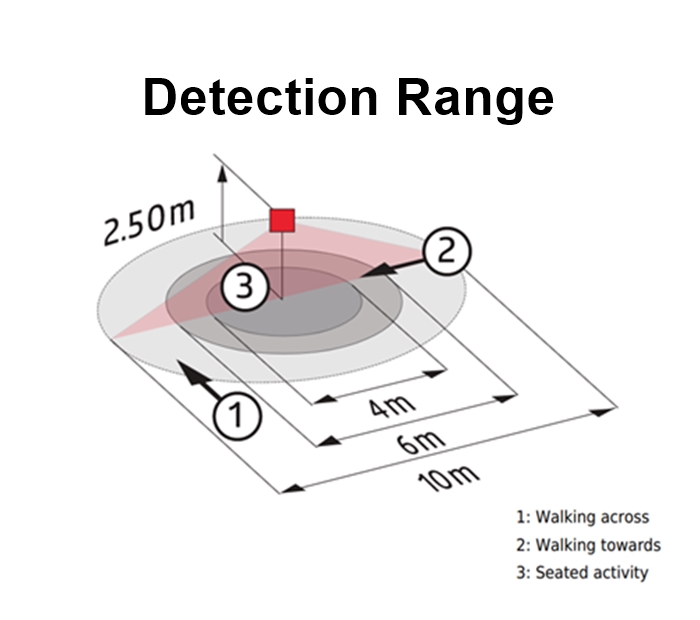

Detection Area: Horizontal 360° (Ceiling mounting)
Range: Max. 10 metres across
Max 6 metres towards
Max. 4 metres seated
Monitored Area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Operating Temperature: -25ºC to +50ºC
Dimensions: Sensor Head Diameter: 45 mm
Sensor Head Height: 37 mm

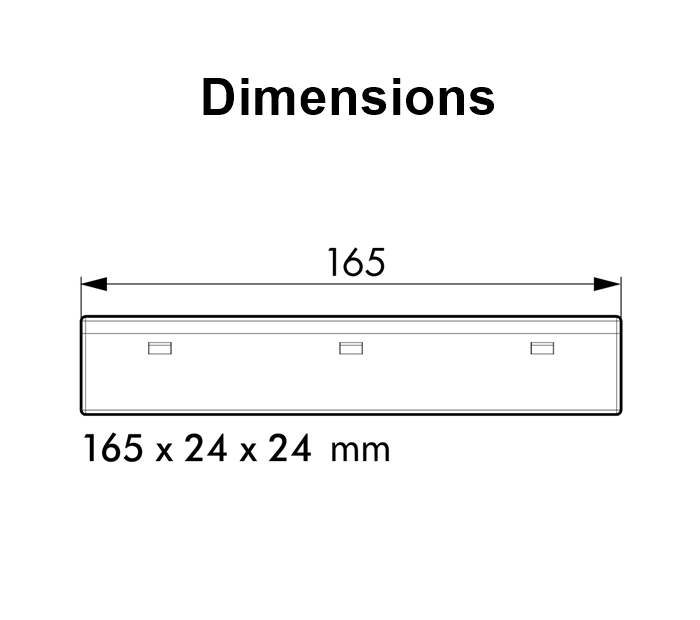

Power Supply:  165 x 24 x 24 mm
Cable Length: 45 cm
Case/Housing Colour: WHITE
Housing: Polycarbonate, UV-resistant
Switching Power: 1000 W, cos φ = 1
500 VA, cos φ = 0.5
200 W LED
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 30 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Model Number: LUXOMAT PD9-1C-FP 92902
