LUXOMAT Recessed Ceiling-mounted Motion Detector PD3N-1C-FC
LUXOMAT Recessed Ceiling-mounted Motion Detector PD3N-1C-FC

LUXOMAT Recessed Ceiling-mounted Motion Detector PD3N-1C-FC

€ 47.25

Discount per Quantity

QuantityDiscountPrice
10 - 193%€ 45.83
20 - 495%€ 44.89
50 +8%€ 43.47
Wishlist
SKU: LUXOMAT PD3N-1C-FC 92196 Categories: , ,
B.E.G. LUXOMAT

Description

B.E.G. LUXOMAT PD3N-IC-FC Recessed Ceiling-mounted Motion Detector 1-channel White body 360° Detection Area 300W LED 1150VA

  • Remote control-capable ceiling motion detector
  • One channel for light switching
  • Special optical system for detection of even the smallest movements
  • Uninterrupted parallel circuit detection of several detectors
  • Manual switching via push-button possible
  • Additional functions can be set up using the optional remote control.
  • Factory settings 10 min and 500 lux
  • Typical applications: monitoring of smaller areas like stairwells, private garages, galleries, wash rooms

Motion Detector Specifications
Brand/Model: B.E.G. LUXOMAT Recessed Ceiling-mount Motion Detector PD3N-1C-FC
Input Voltage: 110 – 240 V AC
Input Frequency: 50 / 60 Hz
Power Consumption: Approx 0.5 W
Detection Area: Horizontal 360° (Ceiling mounting)

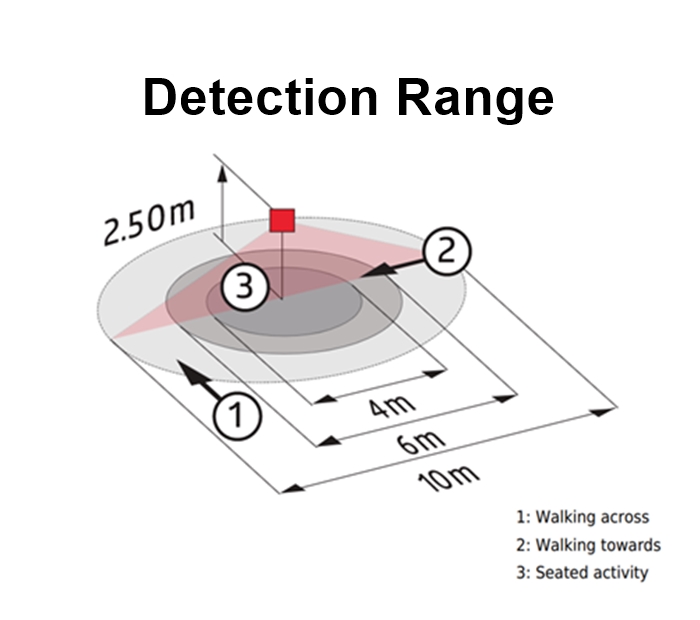

Range: Max. 10 metres across
Max 6 metres towards
Max. 4 metres seated
Monitored Area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 3 m / 2.5 m
Degree / class of protection: IP23 / Class II
Operating Temperature: -25ºC to +50ºC

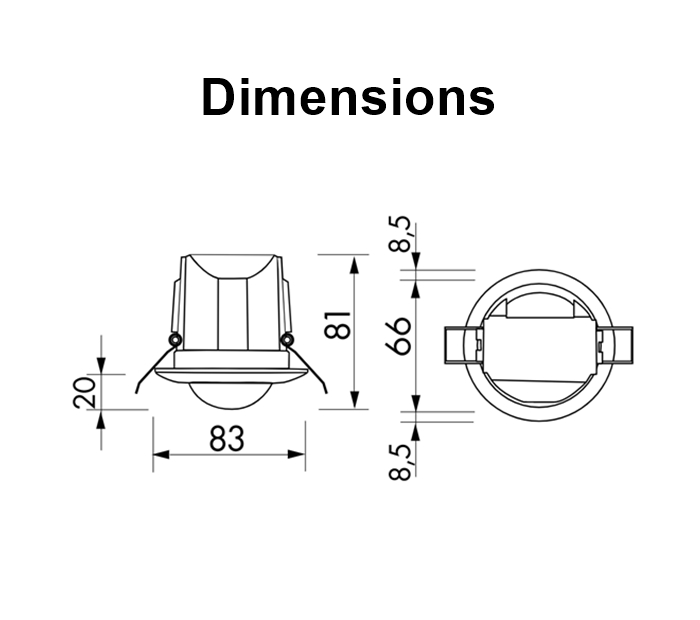

Overall Dimensions: Diameter: 83 mm
Height: 81 mm
Case/Housing Colour: WHITE
Housing: Polycarbonate, UV-resistant
Switching Power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
300 W LED
Type of contact: 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Model Number: LUXOMAT PD3N-1C-FC 92196
