AURORA R6CWSBF Fire Rated Baffled Downlight 4/6/8W LED Colour & Wattage Switchable

€ 22.85

AURORA R6CWSBF | 4/6/8W LED | Fire Rated Downlight | Baffled design | 360-750Lm | Colour & Wattage Switchable | 3000K/4000K/5700K | White | IP65 | AU-R6CWSBF

Discount per Quantity

QuantityDiscountPrice
10 - 192%€ 22.39
20 - 494%€ 21.94
50 +6%€ 21.48
Wishlist
SKU: AU-R6CWSBF Categories: , , , , , , , Tag:
AURORA

Description

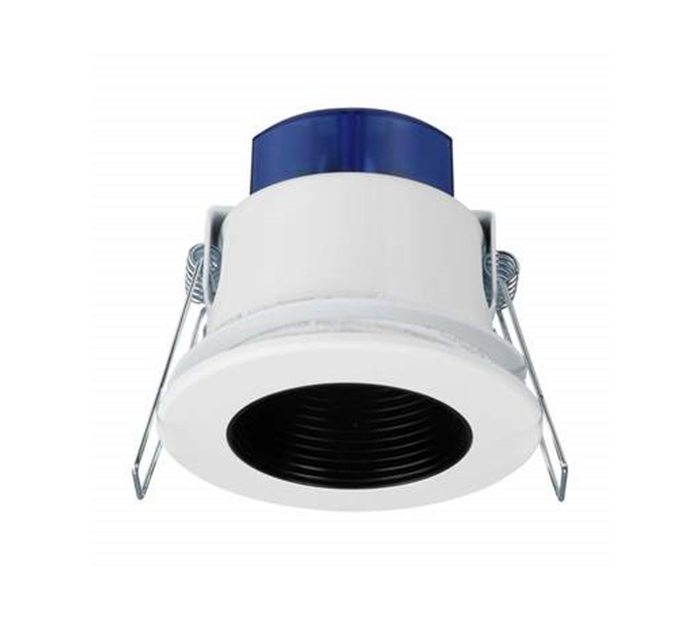

The R6™CWSBF Colour & Wattage Switchable Baffled Downlight belongs to Aurora’s R Series Fire Rated Downlights, offering great installation benefits. The downlight comes with a an AMP connector applied to a remote detachable driver with a loop in/loop out terminal block and at a height of 50mm, it is ideal for shallow ceiling voids.

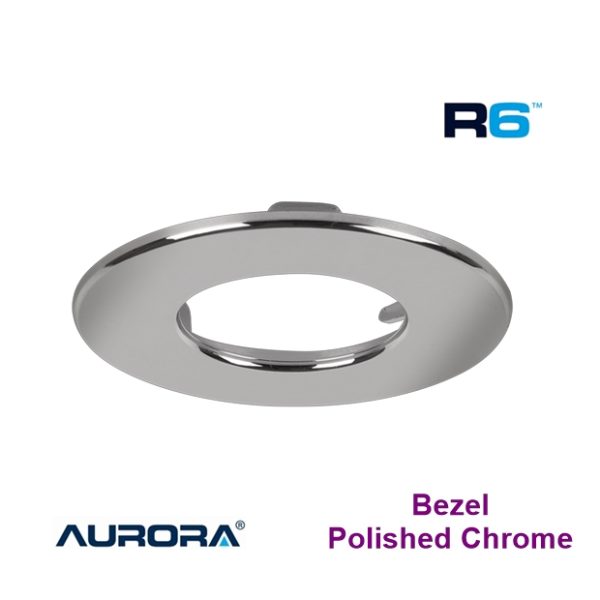

Out of the box, the product comes complete with a polycarbonate white bezel (polished chrome, satin nickel and matt black bezels sold separately).

Watch Video on the AURORA R Series of Fire Rated Downlights.

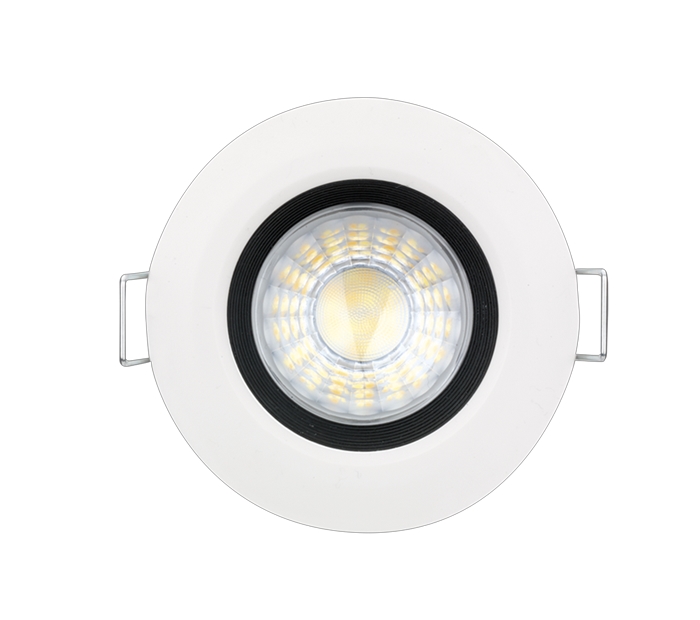

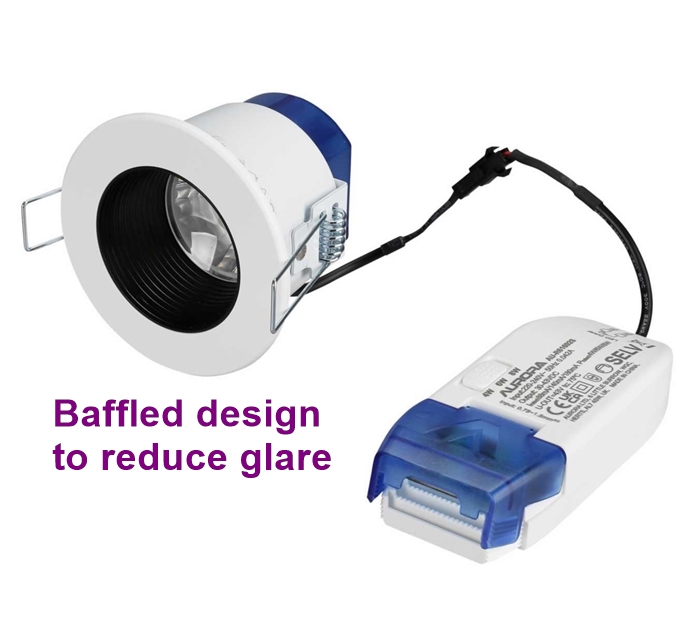

  • Baffled design to reduce glare

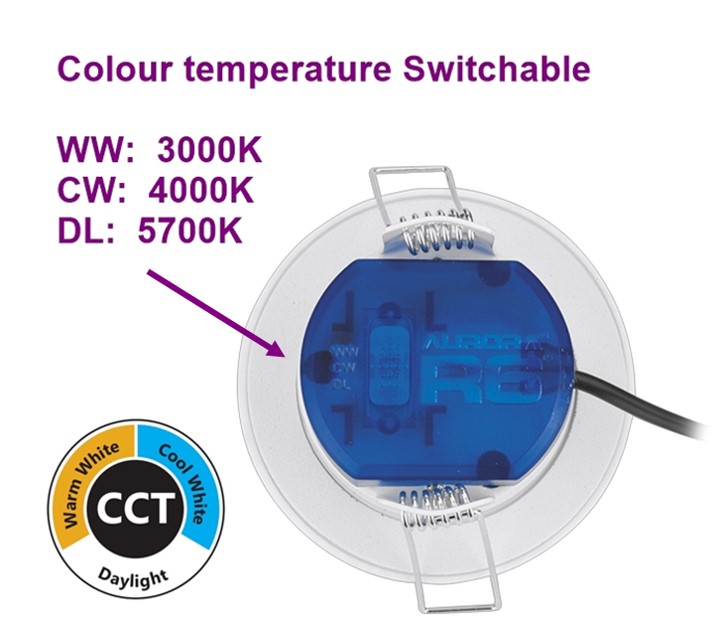

  • Colour Temperature Selectable:  3000K / 4000K / 5700K

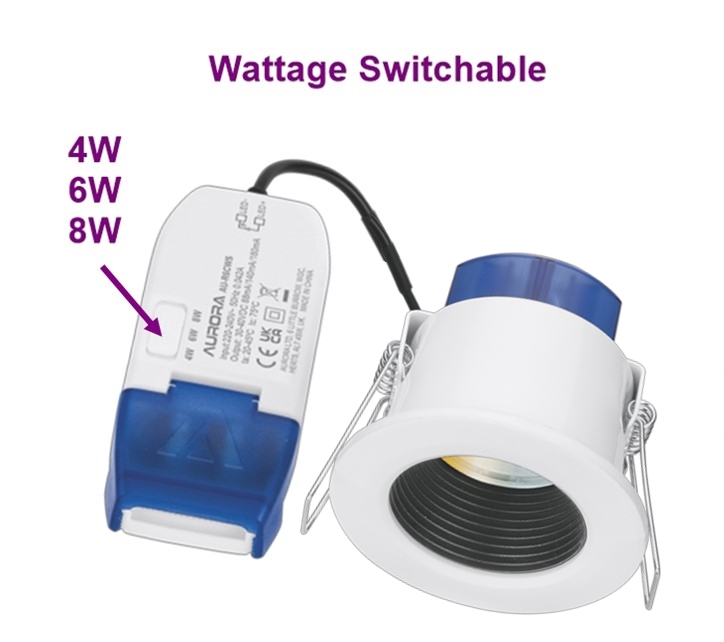

  • Wattage Selectable:  4W / 6W / 8W
  • Low profile design for shallow ceiling voids

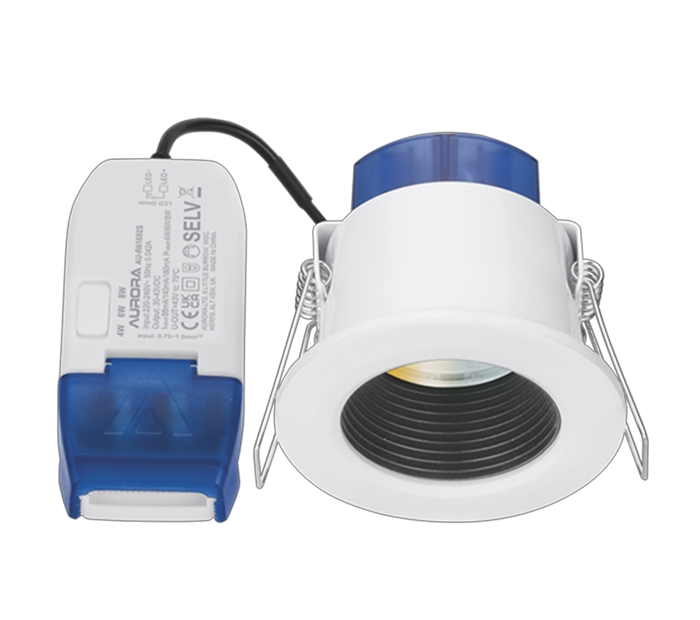

  • Supplied with detachable remote driver

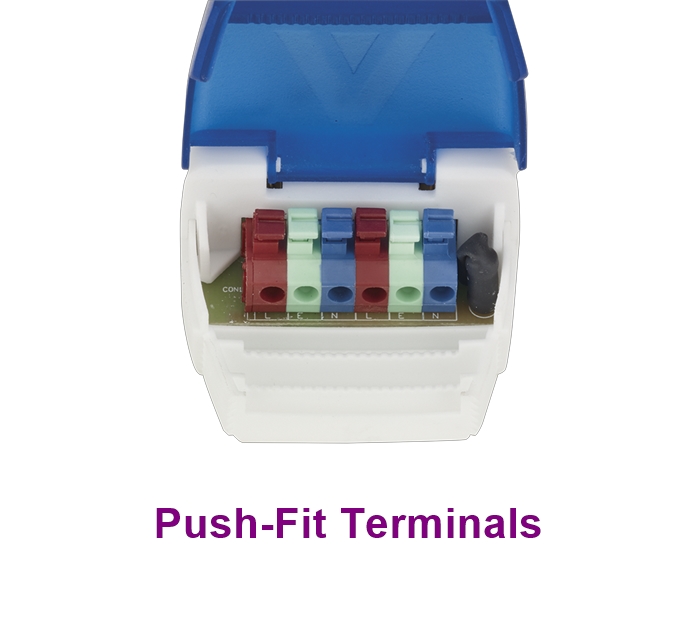

  • Colour coded push fit terminals
  • Delivering up to 103lm/W
  • 55° beam angle
  • Patented fire rated downlight without intumescent
  • Supplied with white IP65 polycarbonate bezel (polished chrome, satin nickel and matt black bezels sold separately)

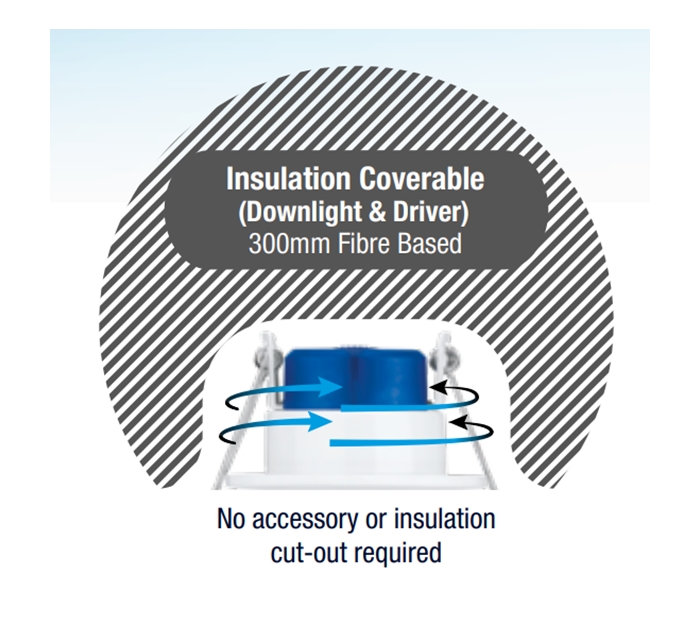

  • Insulation coverable
  • Tested in 30, 60 and 90 minute solid timber joist
  • Tested in 30 minute i-joists and metal web joists
  • 3 Year Warranty

Fire Rated LED Downlight Specifications
  Brand/Model:    AURORA R6CWSBF Baffled Fire Rated LED Downlight Wattage & CCT Switchable .
  Power:    Wattage Selectable:  4W / 6W / 8W
  Luminous Flux (Lumens):    360Lm to 750Lm (9 settings)
  Colour Designation:    Colour Switchable (see below)
  Colour Temperature (Kelvin):    3000K/4000K/5700K (selectable)
  Colour Rendering Index (CRI):    Ra>80
  Luminous Efficacy:    97-104Lm/W
  Product Type:    Fire-Rated Downlight - Fixed Baffled
  Input Voltage:    220 -240 VAC
  Input Frequency:    50/60Hz
  Power Factor:    0.85
  Rated Lifetime:    50,000 hrs  (L70)
  Beam Angle:    55°
  Adjustable (Y/N?):    NO  (Fixed)
  Operating Temperature Range: .    -20° to +45°C
  IP Rating:    IP65

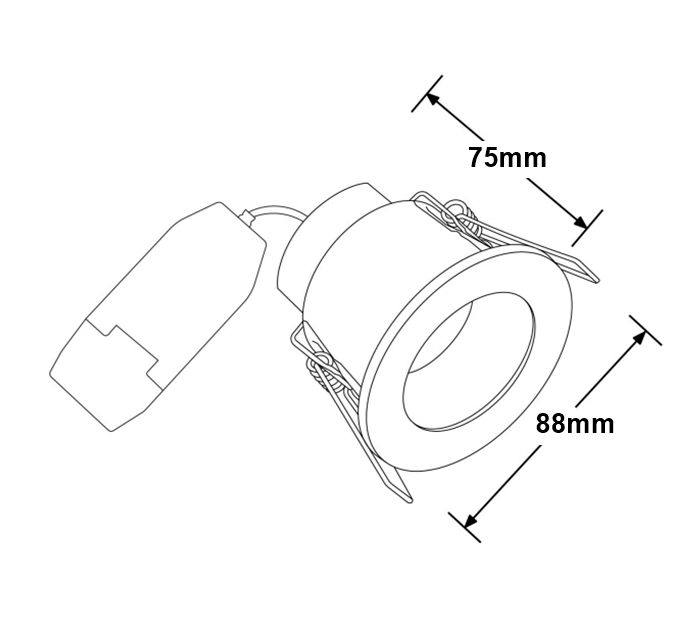

  Dimensions:    Overall Diameter: 88 mm
   Cutout Diameter: 65-70 mm
   Height: 75 mm
  Luminaire Nett Weight:    245 g
  Bezel Material:    Polycarbonate
  Bezel Colour:    WHITE
  Certifications:    CE, UKCA, L1, L2
  Warranty:    3 years
  Model Number:    AU-R6CWSBF
